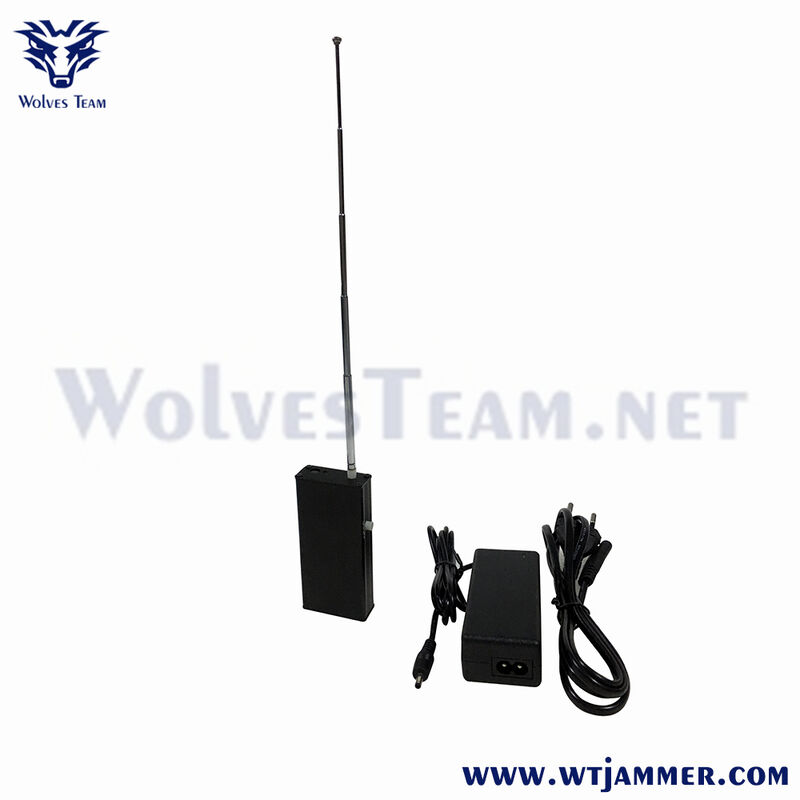

1-Channel Handheld RF Signal Jammer for Single-Band Blocking

1-Channel Handheld RF Signal Jammer for Single-Band Blocking

Nombre De La Marca:	Wolves Team
Número De Modelo:	WT101R-1
Cantidad Mínima De Pedido:	1
Precio:	1
El Tiempo De Entrega:	7-15
Condiciones De Pago:	L/C, D/P, Western Union, T/T

Información Detallada

Descripción del Producto

Información Detallada

Lugar de origen:

Porcelana

Certificación:

ROHS/FCC/ISO 9000/CE

Tipo de producto:

Emisión de la señal del PDA

Número de canales:

18 canales

Bandas de frecuencia de jamming:

GSM/2G/3G/4G/5G, WiFi 2,4G/5G/6E, GPS L1/L2/L5, Bluetooth

Rango de frecuencia de funcionamiento:

800-960MHz, 1710-2700MHz

Tipo de batería:

Batería de ión de litio recargable incorporada

Tiempo de trabajo continuo:

1-2 horas

Voltaje de entrada:

CA 100-240 V 50/60 Hz/CC 12 V

Temperatura de funcionamiento:

-10 ℃ ~ +55 ℃

Temperatura de almacenamiento:

-20 ℃ ~ +70 ℃

Detalles de empaquetado:

Embalaje de cartón

Capacidad de la fuente:

Resaltar:

1-channel handheld signal jammer

single-band RF signal blocker

portable RF jamming device

Descripción del Producto

1-Channel Handheld RF Signal Jammer for Single-Band Blocking

This advanced 18-band handheld portable signal jammer features an innovative 18-antenna design with dual-band channels to eliminate mutual interference. It effectively blocks 5G, 4G, 3G, 2G cell phone signals and LOJACK, GPS, Wi-Fi RF bands. With 18W output power, the jamming range is 2-25 meters (at -75dBm, depending on signal strength).

Key Features

Unique 18-band handheld portable design with 18 antennas
Dual-band channels eliminate interference between close frequencies
18W power output with 2-25 meter jamming range
Built-in 12000mAh battery provides 2 hours of working time
Advanced cooling system with 3 built-in fans and larger heat sink
DIP switch control for independent band activation
Compact portable size: 210x130x46mm
1-year warranty included

Application Areas

Meeting rooms, classrooms, training centers, churches, temples
Banks, museums, galleries, theatres, concert halls
Factories, hospitals, cars, trucks, buses, vans
Public and private areas requiring signal jamming and information security

Technical Specifications

Jamming Range	2-25 meters (depending on signal strength in given area)
Product Size	190x126x46mm
Output Power	18 Watt
Power Supply	AC100-240V to DC12V IN, Built-in Battery: 12000mAh
Cooling System	3 Cooling fans inside
Working Time	2 Hours
Box Size	31x27x8cm
Gross Weight/Set	2.5kg
Carton Size	67x54x46cm/20pc
Gross Weight/CTN	45kg
Delivery Date	1-3 days
Warranty Date	1 Year

Frequency Band Configuration

Channel	Signal System	Frequency	Power
1	CDMA/868/GSM&LORA	851-894 /900-960MHz	1W
2	PCS1900	1930-2000MHz	1W
3	3G	2110-2180MHz	1W
4	4GLTE Low	698-798MHz	1W
5	4GLTE High	2500-2690MHz	1W
6	4G2300	2300-2400MHz	1W
7	UHF&CDMA450/4G1700/LORA	400-470/1710-1780/900-930MHz	1W
8	5G600	617-698MHz	1W
9	5G3500	3400-3600MHz	1W
10	5G3700	3600-3800MHz	1W
11	WIFI2.4G	2400-2500MHz	1W
12	WIFI5.2G	5100-5500MHz	1W
13	WIFI5.8G	5500-5900MHz	1W
14	GPS&Glonass L1	1560-1610MHz	1W
15	GPSL2L3L4L5	1170-1390MHz	1W
16	VHF&LOJACK	135-175MHz	1W
17	RC433	433MHz	1W
18	RC315	315MHz	1W
