detalles de productos

En casa. Productos

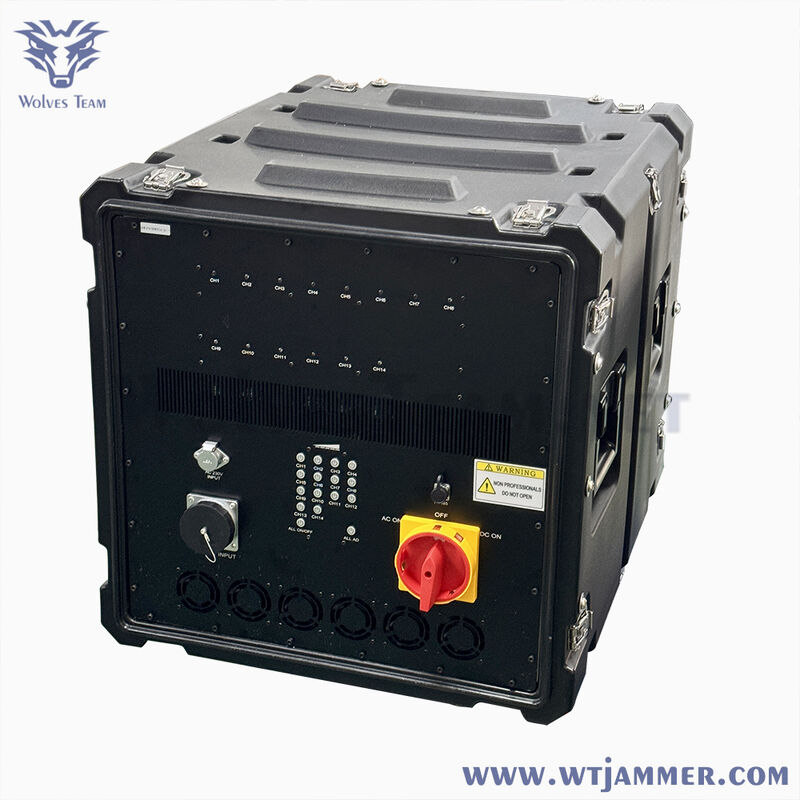

20-6000Mhz Vehicle Mounted High Power Wireless Frequency Signal Jammer

Nombre De La Marca:	Wolves Team
Número De Modelo:	WT805712
Cantidad Mínima De Pedido:	1
El Tiempo De Entrega:	3-4 semanas
Condiciones De Pago:	L/C, D/P, T/T, Western Union

Información Detallada

Descripción del Producto

Información Detallada

Lugar de origen:

Porcelana

Certificación:

CE,ISO

Ventaja:

Guarde para la instalación del módulo de la mejora

Tiempo de funcionamiento de la batería:

2-3 horas

Embalaje:

caja

Material:

aleación de aluminio

Sistema de refrigeración:

Disipador de calor de aleación de aluminio de alta eficiencia

Emisión de la señal para:

Signo de 20 - 6000 MHz

Fuente de interferencia:

Tecnología DDS/PLL

Atasco de área:

50 a 300 metros

Tipo:

Emisión al aire libre del vehículo

Frecuencia para:

Cobertura completa 20-6000 MHz

Método de control:

Control remoto/interruptor manual

Dimensión:

625×500×700 milímetro

Frecuencia de bloque:

Celular NMT CDMA UHF VHF

Detalles de empaquetado:

caja

Resaltar:

vehicle mounted signal jammer

high power wireless jammer

6000Mhz frequency signal jammer

Descripción del Producto

20-6000Mhz Vehicle Mounted High Power Wireless Frequency Signal Jammer

Product Overview

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system. It is designed for protecting military and country leaders VIP teams, EOD, police investigation and arrest prisons, government buildings, wireless remote bomb threats, and providing temporary protection in emergency situations.

Additionally, this Bomb jammer can cover, continuously and simultaneously, all RF communication frequencies customizable from 20-6000MHz. It serves as the ideal solution for defending VIP convoys with its rapid deployment and setup capabilities, making it suitable for military bases, important sports events, international summits, and other high-profile gatherings.

The Bomb jammer is a fully portable multi-band PLL or DDS Jamming system, housed in a ruggedized trolley type case for high mobility. It consists of more than 12 different jamming modules that can operate across more than 12 bands. This High Power Jammer with 12 bands jamming frequency modules can deliver up to 1200 Watt maximum output power. Installation and operation are straightforward, and the device can be powered by AC mains or a suitable DC power source. The system design complies with military requirements and international quality standards.

Key Features

Aluminum-alloy Casing with High Protection - Excellent protection against dust, water, and corrosion
Efficient Cooling System - Heat sink design with fans ensures cool operation
Interference Prevention Technology - Special technology prevents interference between frequency bands
Non-Disruptive Operation - Only interferes with downlink frequency, allowing Base Stations to function normally
Flexible Configuration - Selectable frequency bands and adjustable output power
Circuit Protection Mechanism - Prevents damage from antenna short-circuiting or disconnection
Antenna Options - Choice between directional and omni-directional antennas
Easy Installation and Upgrade - User-friendly operation and future upgrade capability
Continuous Operation - Designed for 24/7/365 operation without interruption

Technical Specifications

Output Interface	RF Frequency Band (MHz)	Application	RF Output Power (Watt)
CH1	20-80	Toys HM Remote control	50W
CH2	135-175	Walky-talky VHF/Lojack	50W
CH3	400-480	Walky-talky (UHF400)	50W
CH4	790-826MHz	4G/GSM850	50W
CH5	925-960MHz	GSM900	50W
CH6	1800-1880MHz	DCS	50W
CH7	2100-2170MHz	3G	50W
CH8	2570-2690MHz	4G WIMAX	50W
CH9	3400-3600MHz	5G	50W
CH10	2400-2500	WIFI & Bluetooth	50W
CH11	5700-5800 MHz	WIFI 5.8G	50W
CH12	1560-1625MHz	GPSL1	50W
Option	20-6000MHz	Option	Option

Parameter	Specification
Total RF Power	600Watt
Power supply	Input AC230V
Shielding area	100-300m @ according to signal density of mobile network
Jammer Module Number	12
Cooling System	Systematic Smart Cooling System
System Protection	VSWR, Over-voltage, Over-current
Jamming Source	PLL Source Technology
Remote Control (Option)	Full System Operation Control
Antenna Type	High Gain Omnidirectional Antennas
Number of Antennas	12
Power consumption	600W
Power Supply Source (Option)	Additional AC Alternator (600W) or Additional DC Generator (+24 VDC/25A)
Weight	35.00Kg
Size (length × width × height)	580×580×680mm
Humidity	30%-95%
Running Temperature	-20 to +60 Celsius Degree

Applications

High quality jammers are extensively utilized in various sectors including:

Military Units
Prison and Police operations
Bomb Disposal
Security Services
Government facilities
Gas Stations and Guard posts
Schools and Churches
Meeting Rooms for invigilation
Libraries and Hospitals
Theaters and Classrooms

These devices serve essential functions in maintaining confidentiality and security in locations where control or restriction of communication signals is crucial.

Frequently Asked Questions

1. Does jammer interfere the other electronic equipment to work in normal condition?

No. Because the electromagnetic signal sent by jammer are totally used in the band that regulated by government and just have interception effect to cell phone communication.

2. Is jammer harmful to the human body and cell phone?

Please do not need to worry about it. The intensity of electromagnetic signal sent by jammer is in compliance with the national standard of environmental electromagnetic wave health. The signal sent by jammer is relatively small and unharmful to human body according to the testing result. Meanwhile, this device just damages the receiving condition to the cell phone and makes the normal connection between cell phone and base station impossible. Therefore, no damage will occur on cell phone itself.

Terms and Conditions

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	50% advance, 50% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.
